Description
Deliver modern style to your working environment with sleek, yet compact installations

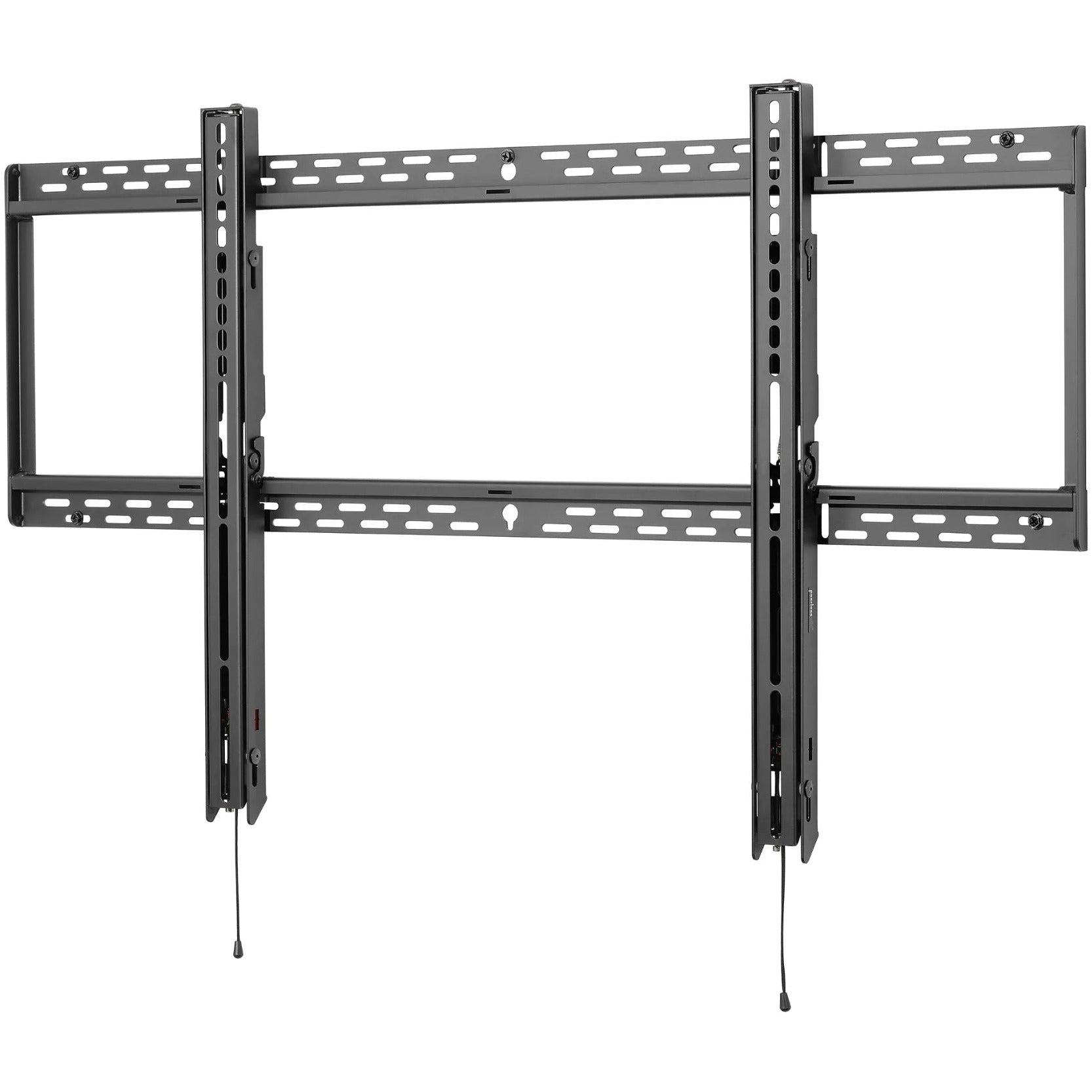

The SF680P universal flat wall mount delivers an ultra-slim profile designed to hold large displays up to 158 kg.
Installation and maintenance are made easy with the SF680P’s robust feature set. The mount’s built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options.
Horizontal and vertical display adjustment allow for quick fine-tuning of the mounted display.
Benefits
- Wall plate installation made easy - wall plate allows a bolt to be pre-installed
- Low-profile design - for a sleek, yet compact installation.
- Flexible installation – with post-installation vertical adjustment.
- Easy access and maintenance – quick-removal draw strings for easy access and maintenance to back of displays.
- Complete shipping content – fastener pack with all necessary mounting and display attachment hardware included.
MOUNT
| Installation | Single |
| Orientation | Landscape; Portrait |
| Max. Load Capacity [kg] | 158 |
| Recommended Display Size [inch] | 65 to 98; This is just a recommendation. Please check desired size, weight and VESA pattern. |
| Dimensions (W x H x D) [mm] | 1,062 x 698 x 44 |
| Weight [kg] | 7.8 |
| Min. Depth [mm] | 44 |
| Shipping Weight [kg] | 9.21 |
| Shipping Dimensions (W x H x D) [mm] | 1,185 x 58 x 390 |
| VESA Pattern [mm] | 1100 x 650 |
| Colour Versions | Black |
| Warranty | 5 years |
Display Specifications
Panel Size:
Panel Type :
Response Time:
Horizontal Sync :
Native Resolution :
Aspect Ratio :
Panel Brightness :
Static Contrast :
