Description
Features
- 4K UHD 3840 x 2160 resolution

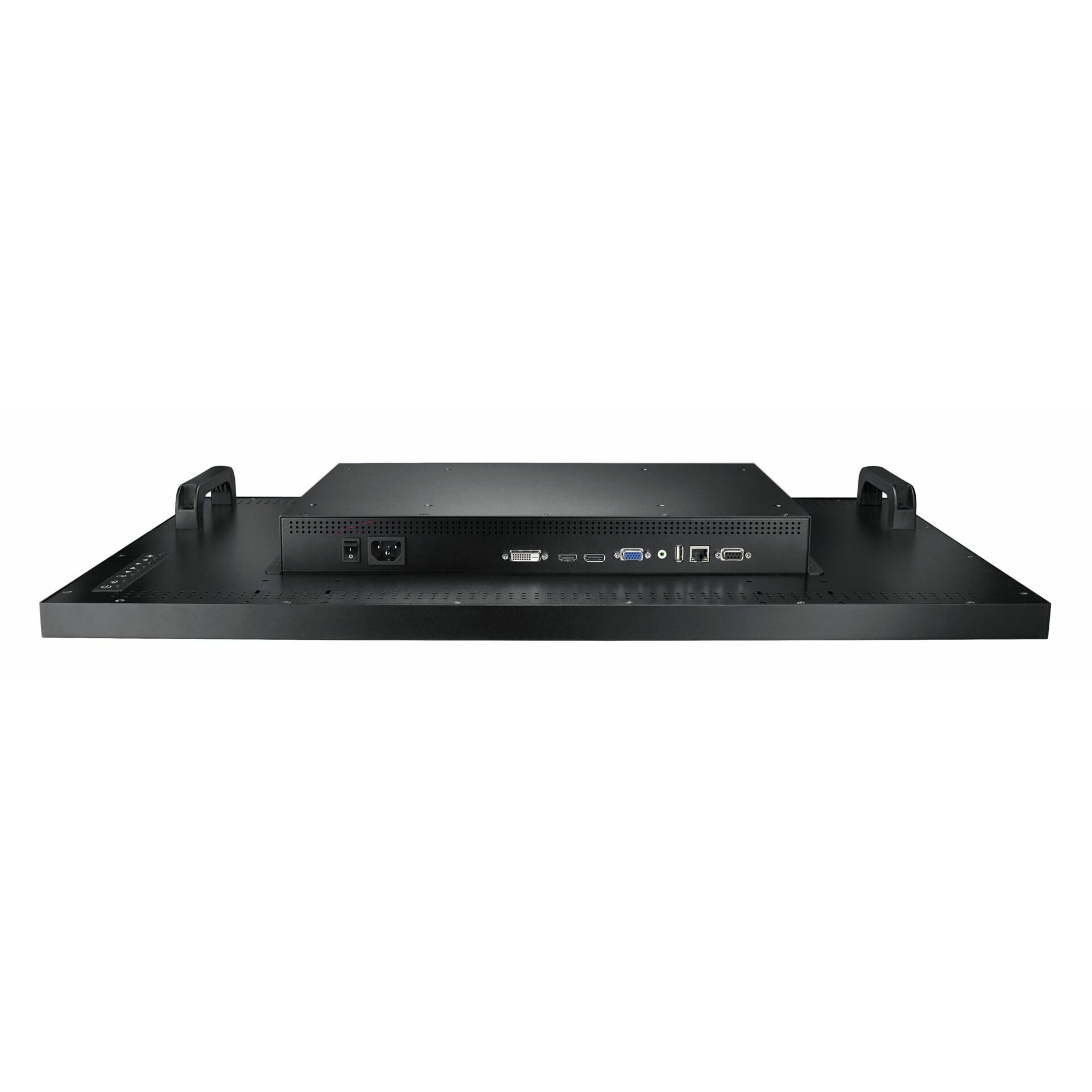

- Versatile connectivity: VGA, DVI, HDMI, DisplayPort inputs
- Anti-Burn-in technology prevents image ghosting
- NeoV Optical Glass screen protects the display from scratches and other damages
- RS232/ RJ45 connection for easy control and management

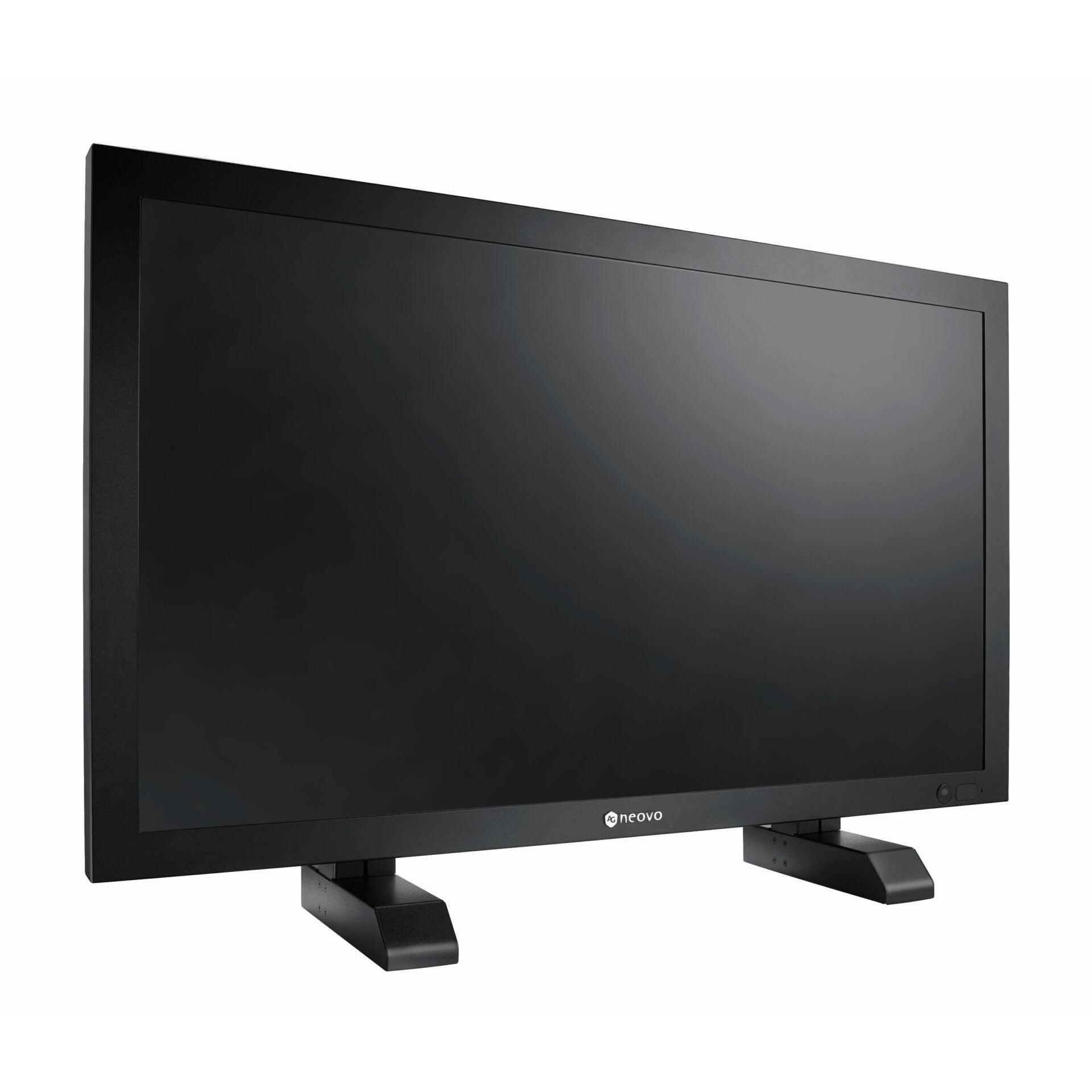

The QX-43 43-Inch 4K surveillance display is designed for high-resolution security systems. Multi-screen viewing enables the simultaneous display of multiple signals with up to 4 split screens. In addition to simplifying hardware setup by enabling the use of one display in place of four 1080p monitors, the QX-43 provides the gain in clarity required for real-time and up-close monitoring in traffic management centres, casinos, emergency operations centres and other public installations.
EXPERIENCE THE 4K DIFFERENCE
Don’t miss a single detail with this powerful 4K display. View smooth 4K video and graphics with a new level of detail and clarity. Offering 8.3 million pixels, the QX-43 43-Inch 4K surveillance display provides sufficient resolution for even the most demanding surveillance and digital signage applications.
EASY CONTROL AND INTEGRATION
Its built-in RS-232 and Ethernet control capabilities make the QX-43 easy to control and integration a breeze. Whether it is a local serial management connection or a remote network installation, the QX-43 can be managed in multiple scenarios and applications.
MULTI-SCREEN VIEWER; ONE DISPLAY, FOUR SCREENS
Beyond the traditional two-input Picture-by-Picture (PIP) feature, the multi-screen viewer can display up to four full HD screens simultaneously from four different input sources. This advanced feature allows it to replace a typical four monitor setup and delivers four-quadrant viewing at crisp and true Full HD content.
INDUSTRY-LEADING RELIABILITY
Designed for 24/7 operation, these durable metal-housed displays protected with NeoV™ Optical Glass screen take advantage of superior components to ensure a long product lifetime. Its integrated HeatControl sensors automatically activate the internal cooling fans, which is crucial when the temperature rises in mission-critical installations.
PID COMMAND & CTRL SOFTWARE
PID Command & Ctrl is a software that allows users to control this 43-Inch 4K surveillance display via LAN or RS232 connections. It provides a simple and intuitive interface for remote management, OSD-related settings, and easy control on deployed displays. It also can be used to create video walls within minutes and assist system integrators with setting up displays.
Specification
Panel
- Panel Type
- VA
- Panel Size
- 42.5"
- Max. Resolution
- UHD 3840 x 2160
- Pixel Pitch
- 0.245 mm
- Brightness
- 500 cd/m²
- Contrast Ratio
- 20,000,000:1 (DCR)
- Viewing Angle (H/V)
- 178°/178°
- Display Colour
- 16.7M
- Response Time
- 5 ms
- Surface Treatment
- Anti-Glare Treatment (Haze 44%),3H Hard Coating
Frequency
- Frequency (H)
- 31 kHz-92 kHz
- Frequency (V)
- 48 Hz-85 Hz
Signal Input
- DisplayPort
- 1.2 x 1
- HDMI
- 2.0 x 1
- DVI
- 24-Pin DVI-D
- VGA
- 15-Pin D-Sub x 1
External Control
- RS232 In
- 9-Pin D-Sub
- LAN
- RJ45 x 1
Other Connectivity
- USB
- 2.0 x 1 (Service Port)
Audio
- Audio In
- Stereo Audio Jack (3.5 mm)
- Internal Speakers
- 10W x 2
Power
- Power Supply
- Internal
- Power Requirements
- AC 100-240V
- 50/60 Hz
- On Mode
- 63.5W (On)
- Standby Mode
- < 0.5W
- Off Mode
- < 0.3W
Glass
- Thickness
- 4.0 mm (0.16")
- Reflection Rate
- < 1%
- Transmission Rate
- > 97%
- Hardness
- > 9H
Operating Conditions
- Temperature
- 0°C-40°C (32°F-104°F)
- Humidity
- 10%-90% (non-condensing)
Storage Conditions
- Temperature
- -20°C-60°C (-4°F-140°F)
- Humidity
- 5%-95% (non-condensing)
Mounting
- VESA FPMPMI
- Yes (400 x 400 mm & 400 x 200 mm)
Dimensions
- Product w/o Base (W x H x D)
- 1002.5 x 589.6 x 87.0 mm (39.5" x 23.2" x 3.4")
- Packaging (W x H x D)
- 1135.0 x 688.0 x 185.0 mm (44.7" x 27.1" x 7.3")
Weight
- Product w/o Base
- 27.1 kg (59.7 lb)
- Packaging
- 31.9 kg (70.3 lb)
Regulation Approval
- Certifications & Compliance
- CE
- LVD
- WEEE
- RoHS
- REACH
- EAC
Accessories
- Supplied
- Batteries
- HDMI Cable
- Power Cord
- Quick Start Guide
- Remote Control
Optional Accessories
- Floor Mount
- FMC-02
- FMC-05B
- FMS-01
- FMS-02
- FWL-01B
- Video Wall Mount
- VWM-01
- VWM-02
- Wall Mount
- LMA-01
- Ceiling Mount (Landscape only)
- CMP-01 + LMK-01
- CMP-01 + LMK-02
- Wall Mount (Landscape only)
- LMA-02
- LMK-01
- LMK-02
- LMK-03
- Desk mount (Landscape only)
- DTS-01
Display Specifications
Panel Size: 43"
Panel Type : VA
Response Time: 5ms
Horizontal Sync :
Native Resolution : 3840 x 2160
Aspect Ratio :
Panel Brightness :
Static Contrast :
