Description
Features
- 2,500 nits ultra-high brightness sunlight readable panel
- Low reflection rate (≦ 1.45%) to enhance readability in bright ambient light areas
- Designed and developed for continuous 24/7 operation
- EcoSmart Sensor automatically adjusts the brightness level
- Compatible with AG Neovo LOC 55 display enclosure

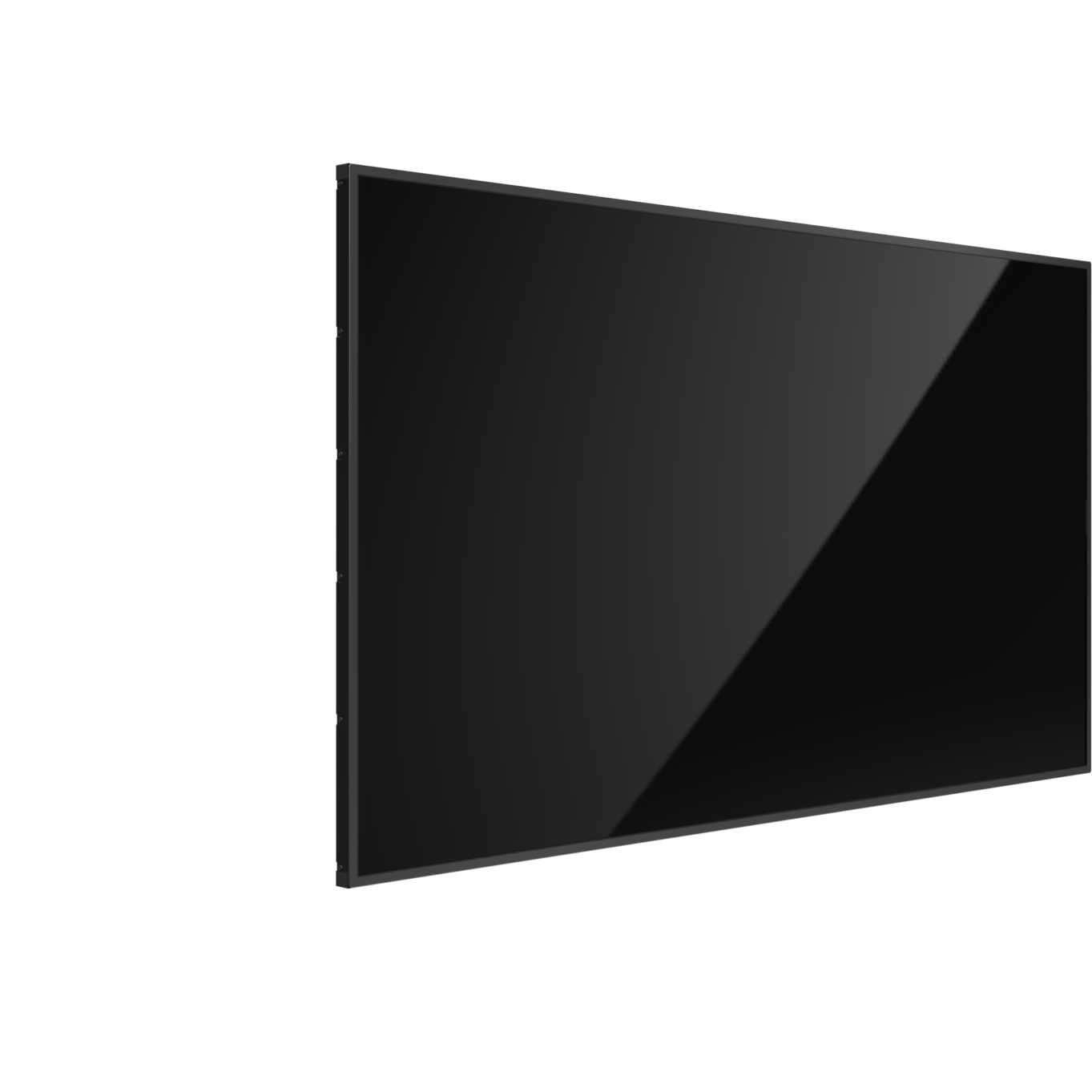

The PO-5502 55-inch 1080p open frame displays are built to stand out in different outdoor environments with 2,500 nits of ultra-high brightness. The LED-backlit open frame panels include brightness levels that maximise visibility, along with an energy-saving EcoSmart Sensor and Anti-Burn-in technology that make the ultra-high brightness digital signage display ideal for 24/7 outdoor use. An open-frame option boosts adaptability, allowing for easier integration into customised designs. In contrast, a dual-fan cooling design coupled with a HeatControl sensor keeps temperatures in control, enhancing the PO-5502 display’s aptitude for outdoor use.
2500 NITS ULTRA-HIGH BRIGHTNESS
With 2500 nits ultra-high brightness, the PO-5502 open frame displays provide optimal readability, whether in direct or indirect sunlight conditions, while retaining the superior image quality AG Neovo large format displays are known for.
24/7 OPERATION UNDER SUNLIGHT
The PO-5502 is made of a Public Information Display (PID) panel for 24/7 operation, in which the liquid crystal cell can resist heat up to 110°C / 230°F, compared to the typical TV panel, around 65-75°C (149-167°F). This unique high-temperature liquid crystal technology prevents the black spots that can develop on competing displays when subject to high heat loads from direct sunlight.
LOW REFLECTION FOR SUPERIOR READABILITY
The PO-5502 displays adopt the Quarter Wave Plate (QWP) polariser with a low reflection solution (Reflectance ≤ 1.45%) to enhance the visibility and colour vibrancy of the display for outdoor applications.
AN EASY-TO-MOVE SENSOR BOARD FOR IR & LIGHT
The magnetic IR and ambient light sensor board can be easy-to-move and magnetised to the rear of the displays or the iron cases to suit different outdoor environments.
BUILT-IN HEAT CONTROL SENSORS

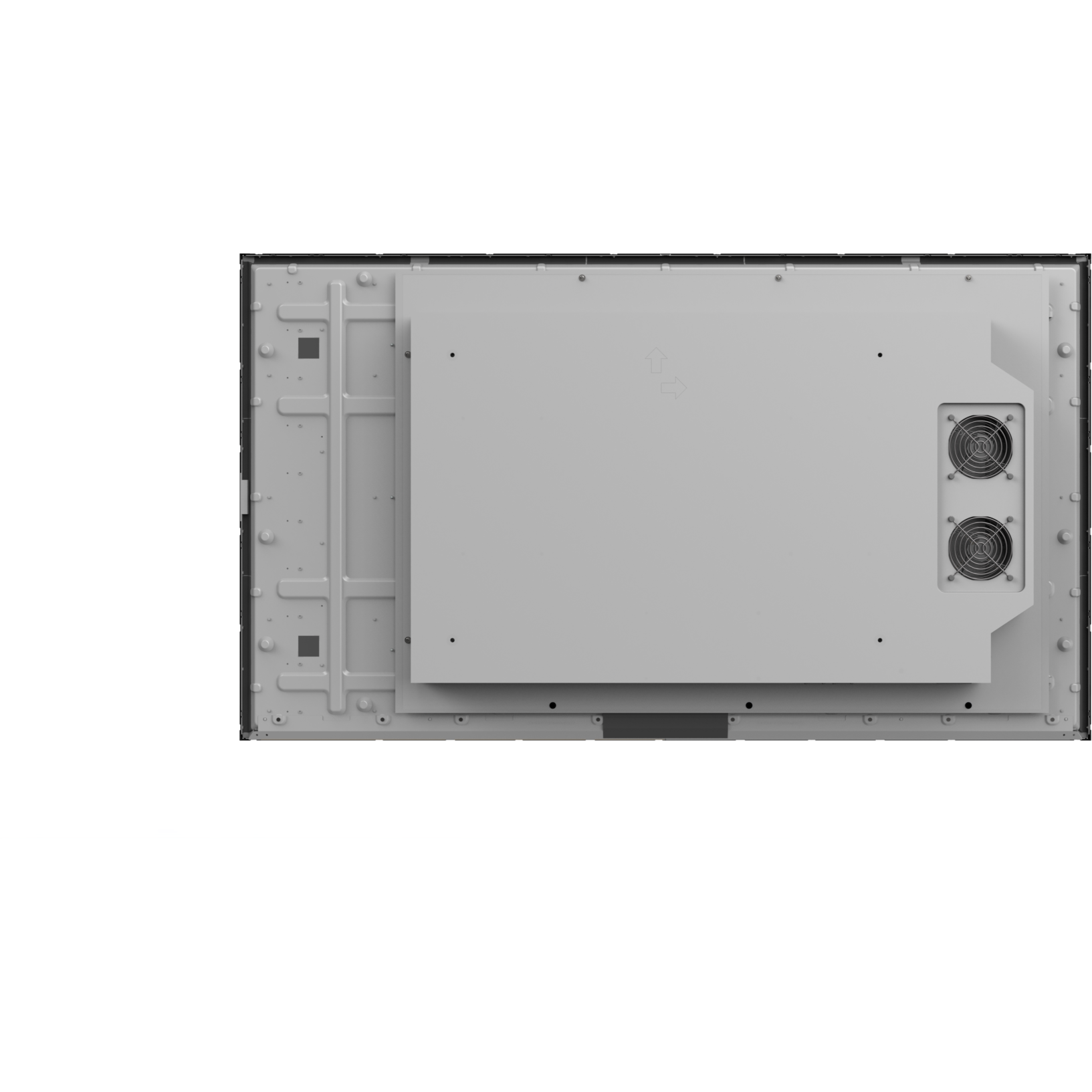

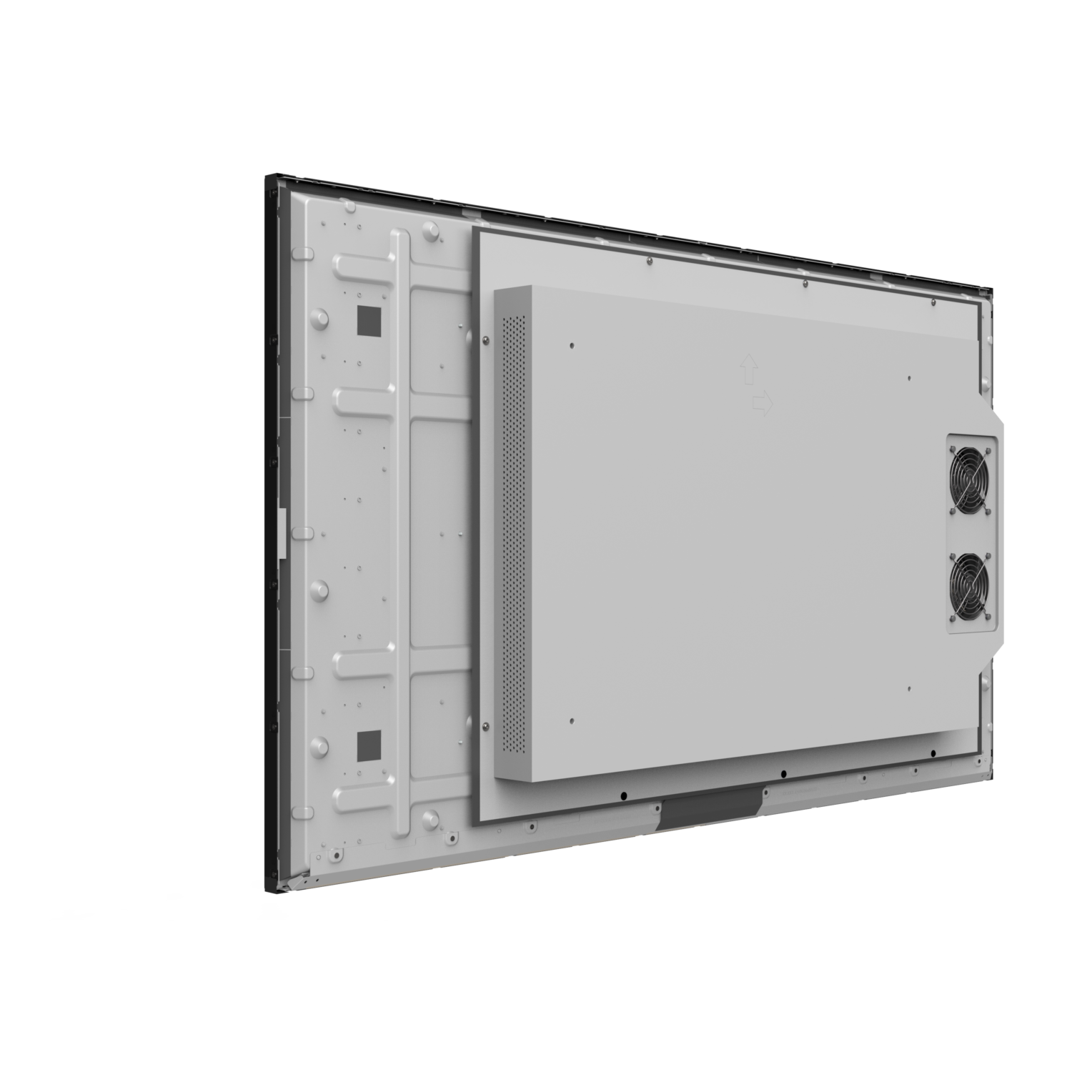

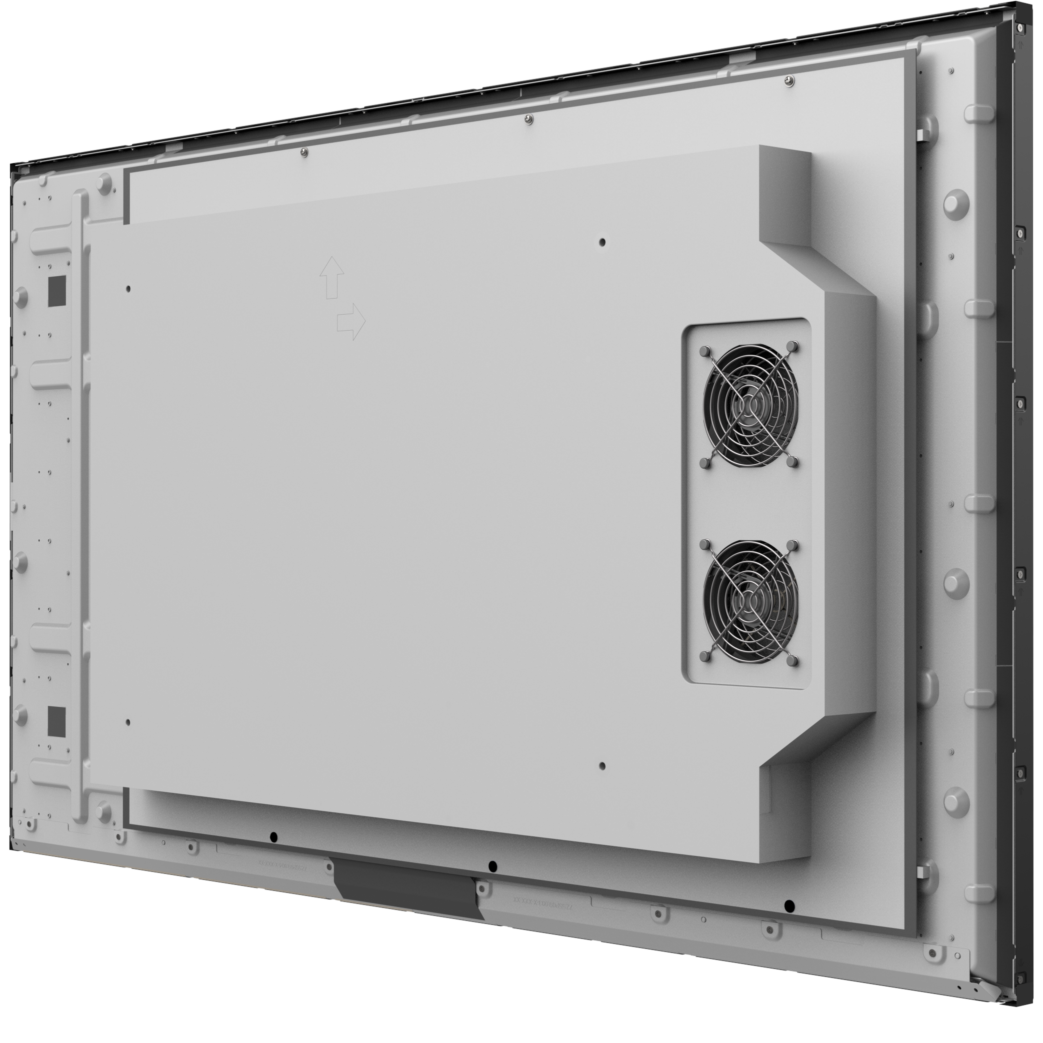

The PO-5502 open frame display’s built-in HeatControl Sensors automatically activate the internal cooling fans when the temperature rises in outdoor environments.
PATENTED ANTI-BURN-IN™ TECHNOLOGY
To combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in Technology to prevent image burn-in and assure the extended life span for displays.
BUILT-IN ECOSMART SENSOR
An embedded energy-saving EcoSmart Sensor, exclusively designed by AG Neovo, can automatically adjust display backlight brightness based on the ambient luminance, particularly in outdoor settings, which can significantly save energy.
LANDSCAPE/PORTRAIT CAPABILITY
The PO-5502 displays are signage-friendly and can perfectly fit either in a landscape or in a portrait mode to experience complete screen orientation flexibility and fulfil the need in different scenarios.
Specification
Panel
- Panel Type
- VA
- Panel Size
- 55"
- Max. Resolution
- FHD 1920 x 1080
- Pixel Pitch
- 0.63 mm
- Brightness
- 2500 cd/m²
- Contrast Ratio
- 4000:1
- Viewing Angle (H/V)
- 178°/178°
- Display Colour
- 16.7M
- Response Time
- 5 ms
- Surface Treatment
Frequency
- Frequency (H)
- 30kHz~74kHz
- Frequency (V)
- 56kHz~76kHz

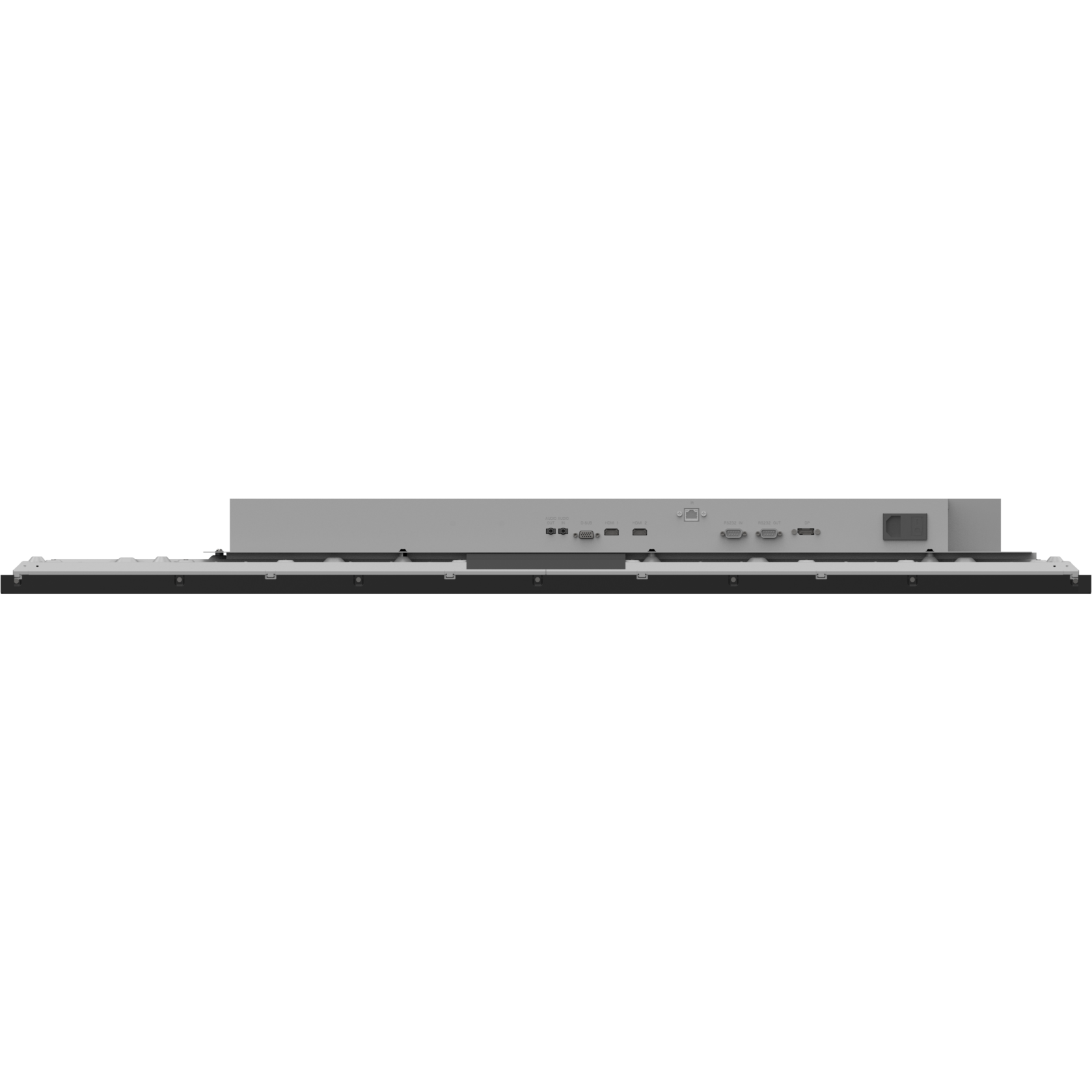

Signal Input
- DisplayPort
- 1
- HDMI
- 1.4 x 2
- VGA
- 15 -pin D-SUB
External Control
- IR In
- RJ45
- RS232 In
- 9-Pin D-Sub
- RS232 Out
- 9-Pin D-Sub
Audio
- Audio In
- Stereo Audio Jack (3.5 mm)
- Audio Out
- Stereo Audio Jack (3.5 mm)
Power
- Power Supply
- Internal
- Power Requirements
- AC 100-240V
- 50-60Hz
- On Mode
- 236W (On)
- Standby Mode
- <0.5W
- Off Mode
- <0.5W
Operating Conditions
- Temperature
- -10°C-50°C (14°F-122°F)
- Humidity
- 10%-80% (non-condensing)
Storage Conditions
- Temperature
- -20°C-60°C (-4°F-140°F)
- Humidity
- 10%-80% (non-condensing)
Mounting
- VESA FPMPMI
- Yes (600 x 400 mm)
Dimensions
- Product w/o Base (W x H x D)
- 1235.6 x 706.4 x 108.0 mm (48.7" x 27.8" x 4.3")
- Packaging (W x H x D)
- 1370.0 x 282.0 x 870.0 mm (53.9" x 11.1" x34.3")
Weight
- Product w/o Base
- 23.5 kg (51.8 lb)
- Packaging
- 30.5 kg (67.2 lb)
Regulation Approval
- Certifications & Compliance
- CE
- LVD
- WEEE
- RoHS
- REACH
- UKCA
Accessories
- Supplied
- Batteries
- IR Sensor
- Power Cord
- Quick Start Guide
- Remote Control
Optional Accessories
- Ceiling Mount (Landscape only)
- CMP-01 + LMK-01
- Wall Mount (Landscape only)
- LMA-02
- LMK-01
- LMK-03
- Floor Mount (Landscape only)
- FMC-03 + LMK-04
- FMC-04 + LMK-04
- FMC-05B
- FMC-06
- FWL-01B
Display Specifications
Panel Size: 55"
Panel Type : VA
Response Time: 5ms
Horizontal Sync :
Native Resolution : 1920 x 1080
Aspect Ratio :
Panel Brightness :
Static Contrast :
