Description
Features
- Full HD 1920 x 1080 resolution
- Freestanding and movable floor stand
- 700 nits high brightness panel offers clear images in bright areas
- Versatile connectivity: HDMI, DVI and VGA signal inputs
- Built-in dual 10W speakers

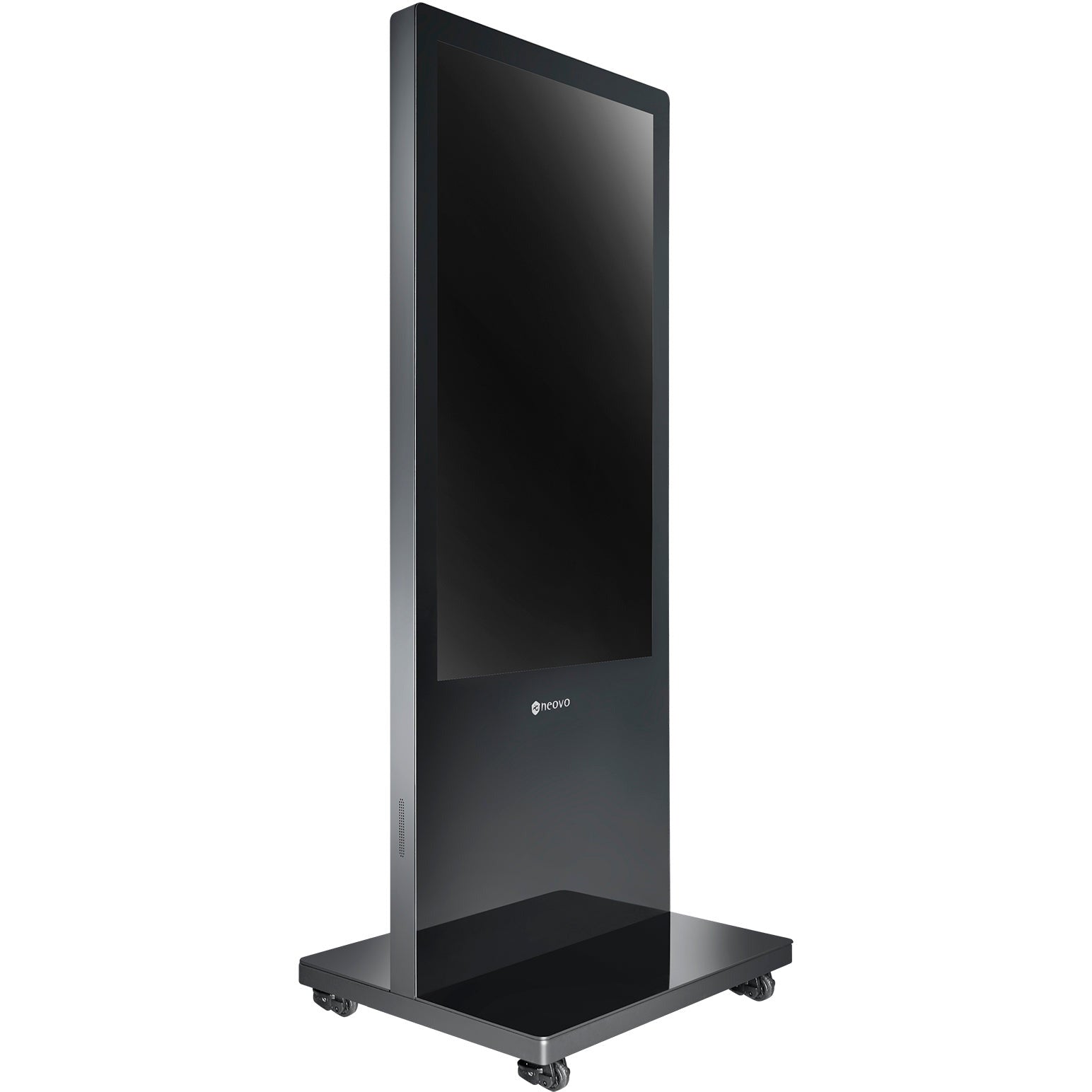

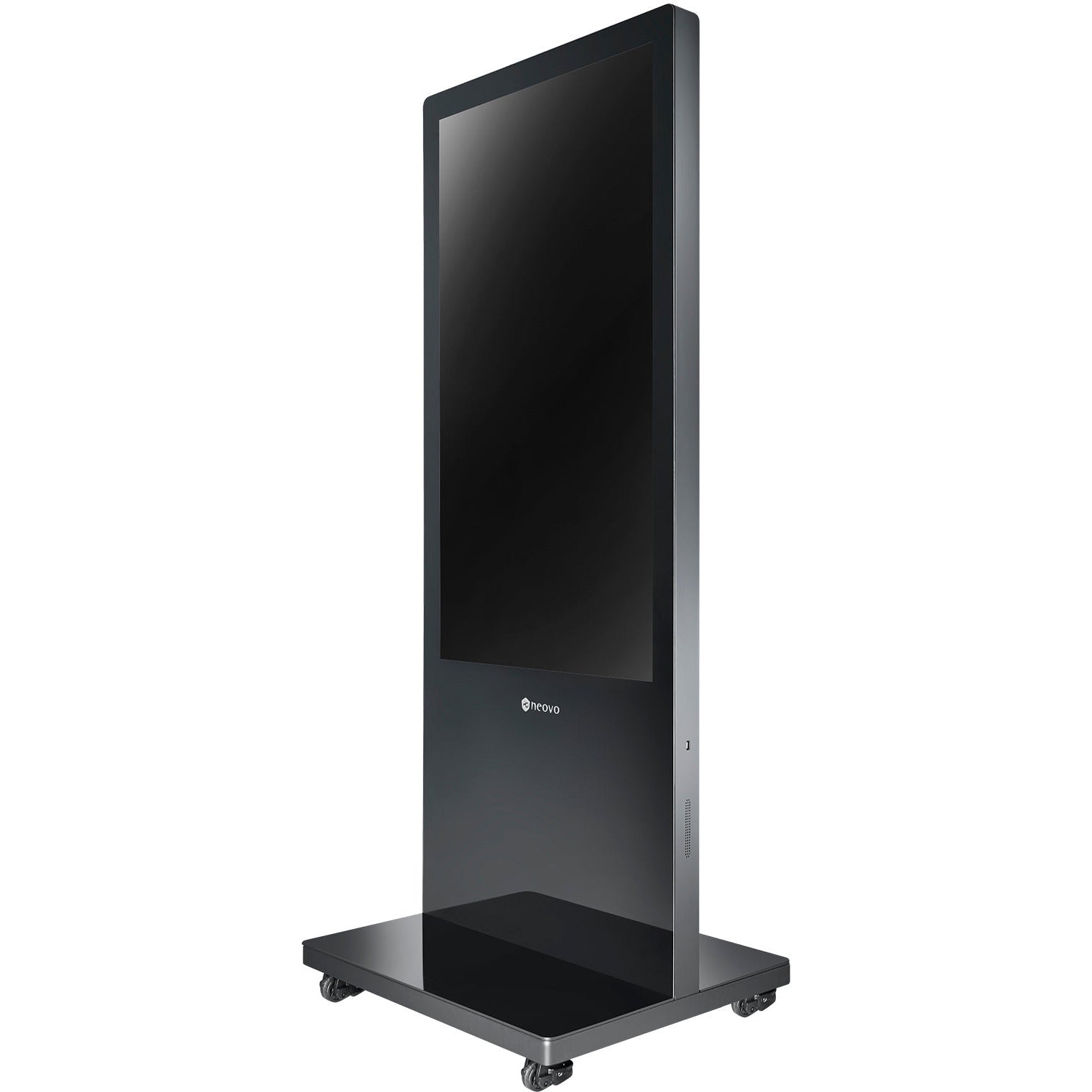

The PF-55H 55-inch digital kiosk display is built on a VA panel with a 700-nit high brightness capability, Full HD 1080p resolution, and a 4000:1 contrast ratio, ensuring lifelike images even in strong ambient lighting settings. The freestanding display is equipped with versatile I/O ports and built-in speakers and can integrate IPC or media player for diverse media playback. With tempered glass on the front-sided, secure locking back cover, and a movable floor stand, the PF-55H is ideal for public environments.
700NITS HIGH VISIBILITY
With a brightness level that reaches 700nits and a VA technology panel that provides a 178-degree wide viewing angle, the PF-55 is able to meet the visual requirements for semi-outdoor use.
EXCELLENT SCRATCH RESISTANCE
Over 9H hardness tempered glass on the front that stretches from top to base with a robust metal casing provides a high level of protection against scratch and strong impact from any outdoor setting.
SECURE DATA PROTECTION

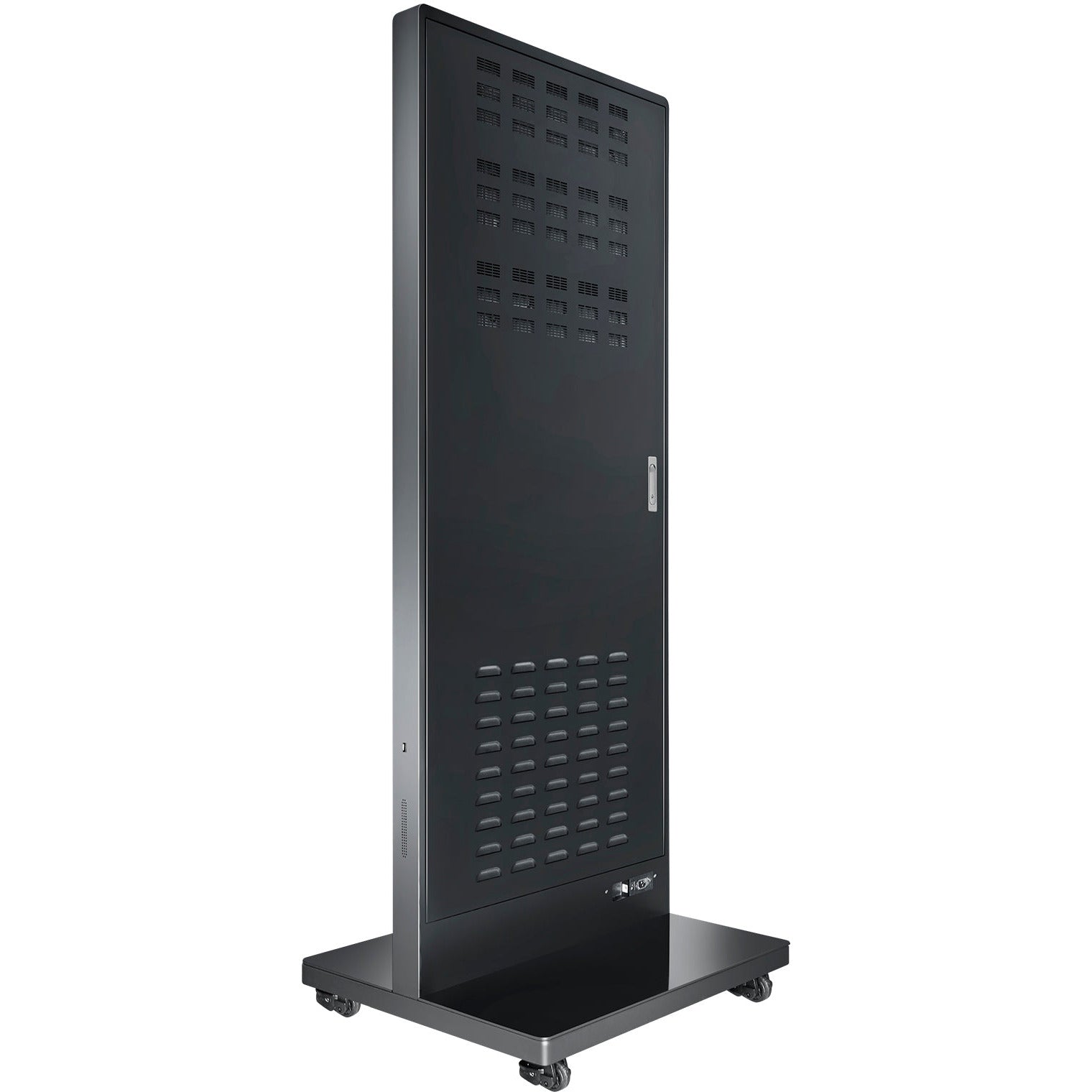

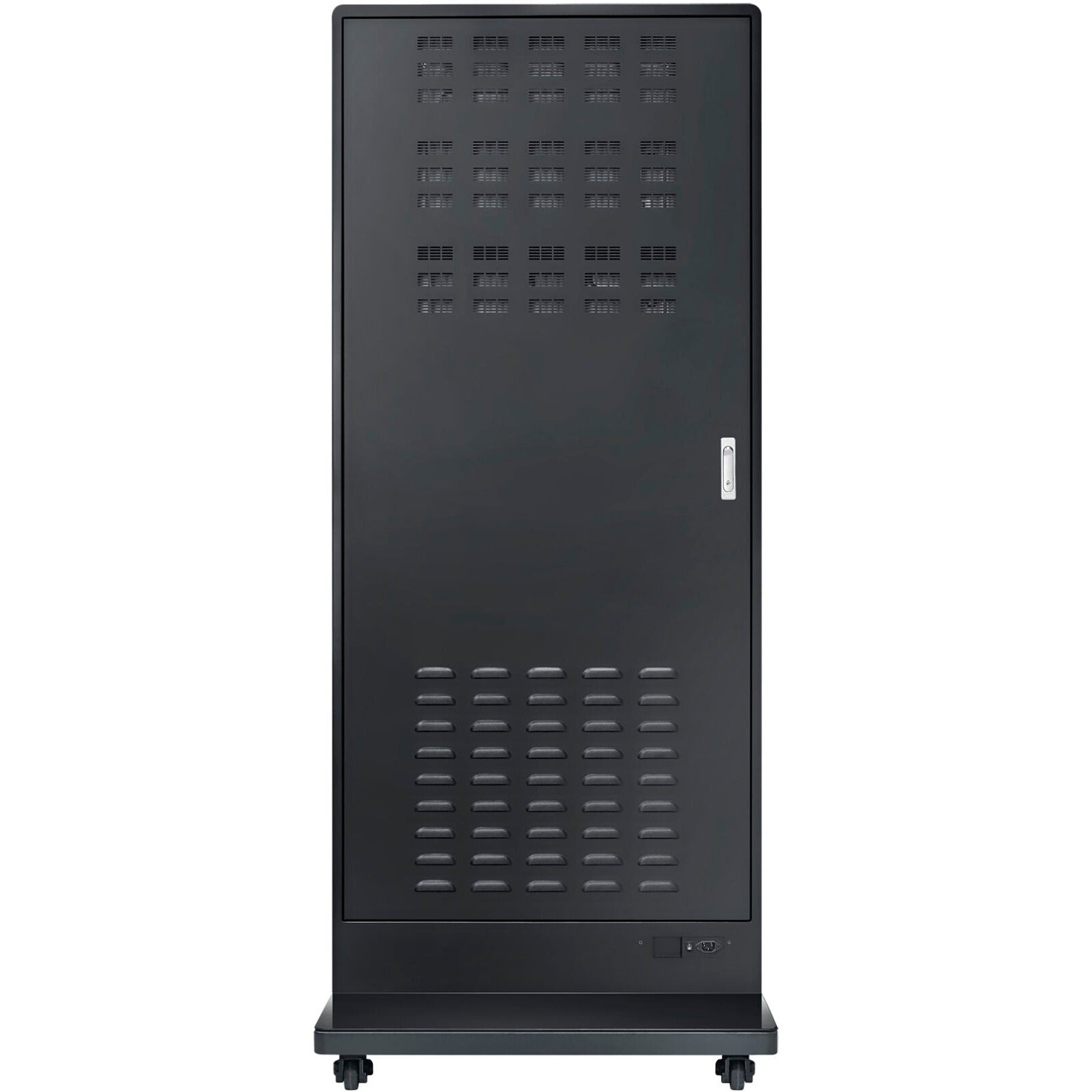

A safe and secure locking back cover ensures strict data protection, making this 55-inch digital kiosk display suitable for public settings.
VERSATILE CONNECTIVITY FOR MULTIMEDIA PLAYBACK
The PF-55H provides versatile connectivity, including VGA, HDMI, DVI, and USB ports, easily connected to various external media players or IPCs.
FLEXIBLE MOBILITY

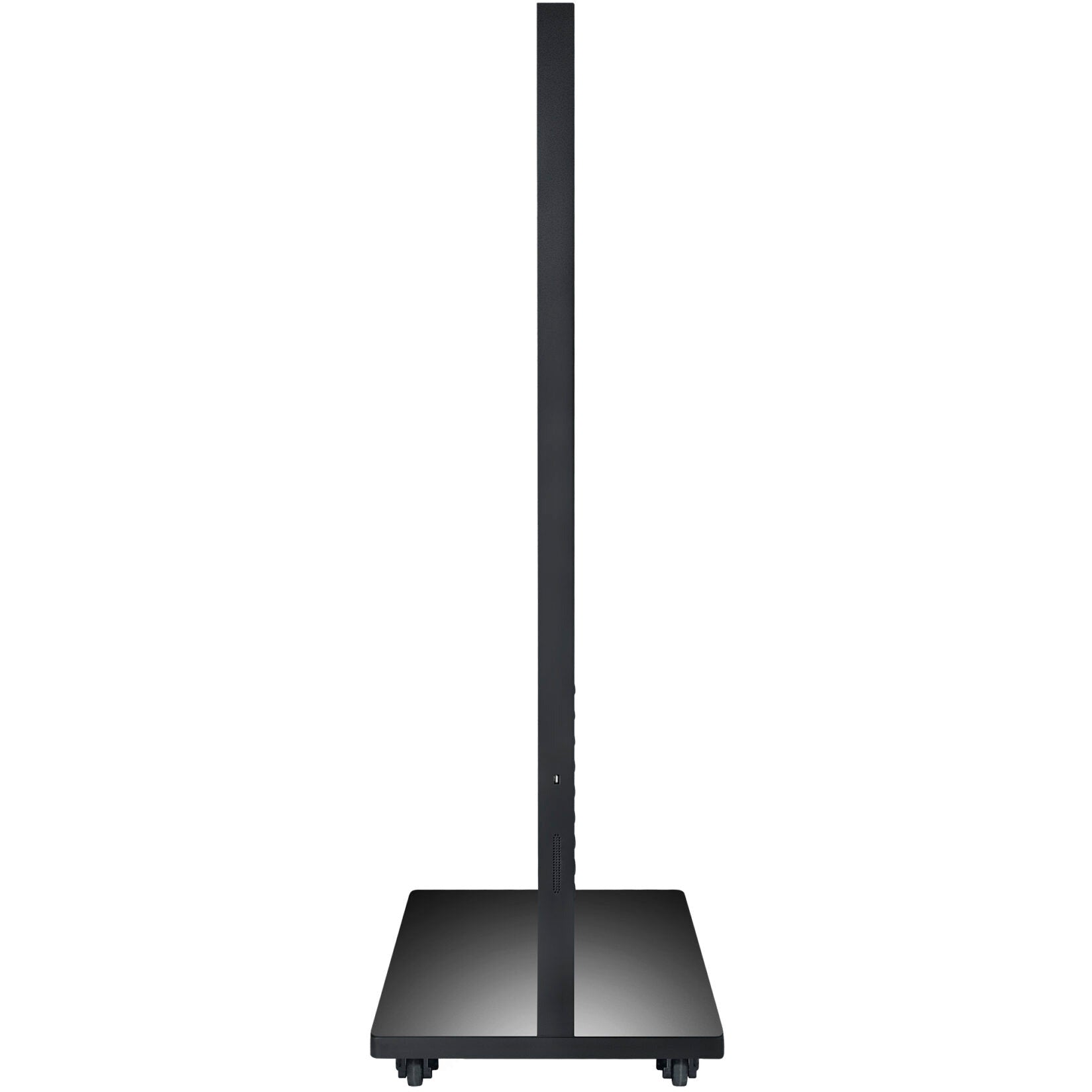

The PF-55H freestanding floor stands with four small casters makes the kiosk display movable and convenient in different locations.
Specification
Panel
- Panel Type
- VA
- Panel Size
- 54.6"
- Max. Resolution
- FHD 1920 x 1080
- Pixel Pitch
- 0.630 mm
- Brightness
- 700 cd/m²
- Contrast Ratio
- 4000:1
- Viewing Angle (H/V)
- 178°/178°
- Display Colour
- 1.07B
- Colour Gamut
- NTSC 72%
- Response Time
- 5 ms
- Surface Treatment
- Anti-Glare Treatment (Haze 11%)
- 3H Hard Coating
Frequency
- Frequency (H)
- 10 kHz-88 kHz
- Frequency (V)
- 10 Hz-93 Hz
Signal Input
- HDMI
- 1.2 x 1
- DVI
- 24-Pin DVI-D
- VGA
- 15-Pin D-Sub x 1
Other Connectivity
- USB
- 2.0 x 1 (Service Port)
Audio
- Audio In
- Stereo Audio Jack (3.5 mm)
- Audio Out
- Stereo Audio Jack (3.5 mm)
- Internal Speakers
- 10W x 2
Power
- Power Supply
- Internal
- Power Requirements
- AC 100-240V
- 50/60 Hz
- On Mode
- 170W (On)
- Standby Mode
- < 1.0W
- Off Mode
- < 1.0W
Glass
- Thickness
- 5.0 mm (0.20")
- Hardness
- > 9H
Operating Conditions
- Temperature
- 0°C-40°C (32°F-104°F)
- Humidity
- 20%-80% (non-condensing)
Storage Conditions
- Temperature
- -10°C-50°C (14°F-122°F)
- Humidity
- 20%-80% (non-condensing)
Dimensions
- Product with Base (W x H x D)
- 815.0 x 1975.0 x 651.0 mm ( 32.1" x 77.8" x 25.6")
- Packaging (W x H x D)
- 2050.0 x 930.0 x 770.0 mm (80.7" x 36.6" x 30.3")
Weight
- Product with Base
- 105.0 kg (231.0 lb)
- Packaging
- 115.0 kg (253.0 lb)
Regulation Approval
- Certifications & Compliance
- CE
- LVD
- RoHS
- WEEE
- REACH
Accessories
- Supplied
- DVI Cable
- Power Cord
- User Manual (printed)
Video
Display Specifications
Panel Size: 55"
Panel Type : VA
Response Time: 5ms
Horizontal Sync :
Native Resolution : 1920 x 1080
Aspect Ratio :
Panel Brightness :
Static Contrast :
