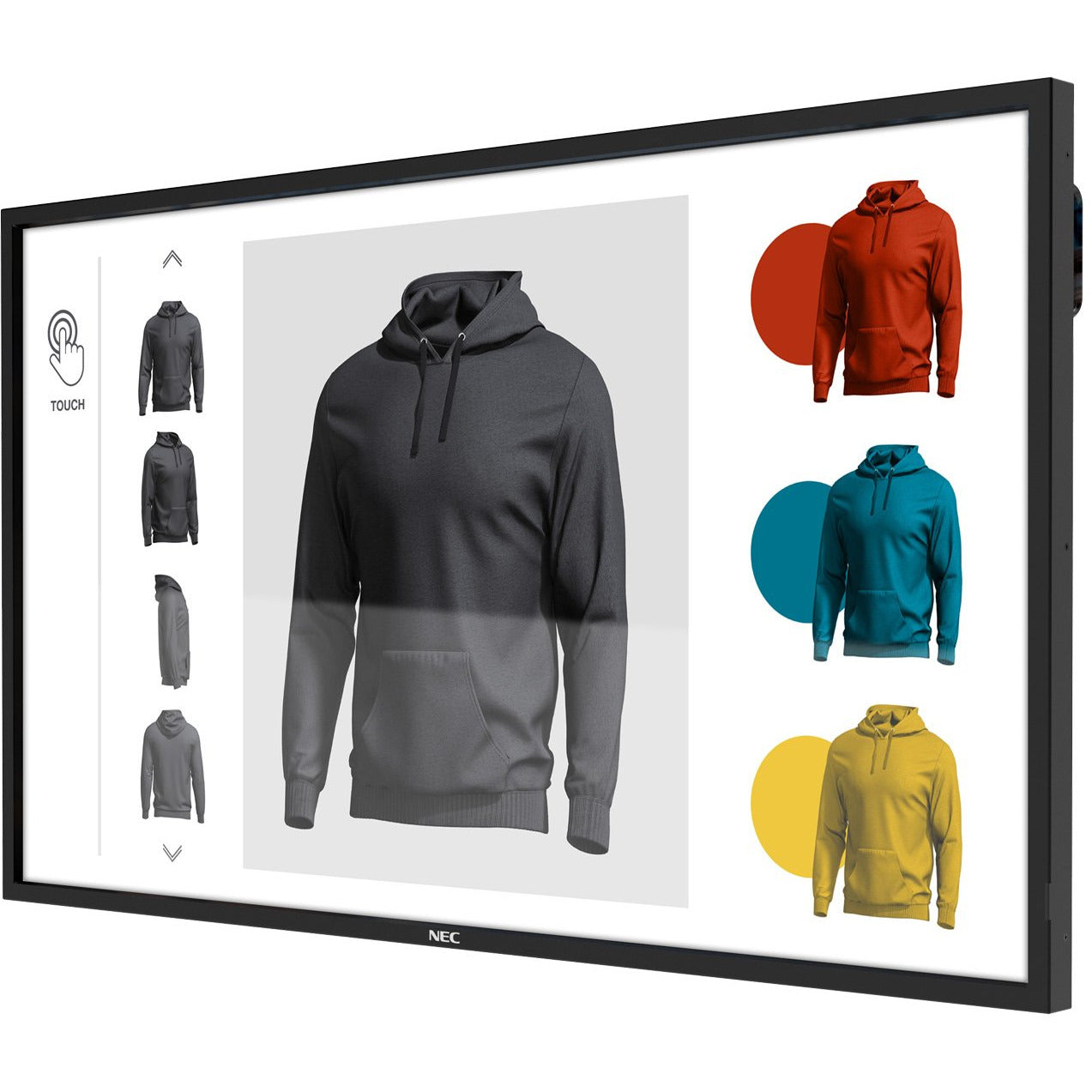

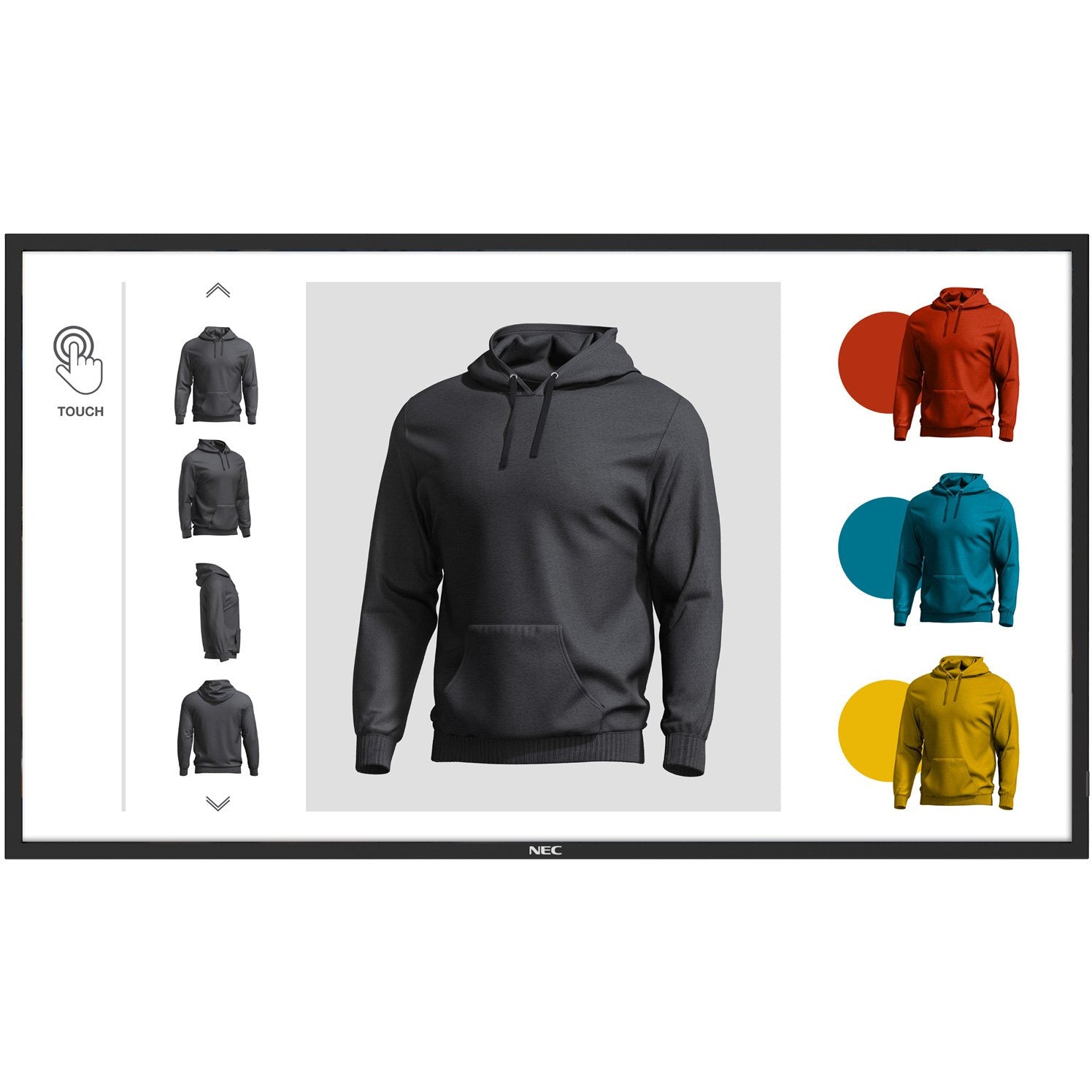

NEC MultiSync® ME551 IR LCD 55" Infrared Touch Display

NECSKU: ME551 IR

Price:
Sale price£2,836.00

Tax included Shipping calculated at checkout

Stock:
Sold out

Pickup currently unavailable at USA Warehouse

Description

Reliable touch performance for budget-driven usage

Offering a professional feature set and Sharp/NEC’s renowned high reliability, yet at a very attractive price point, the NEC ME series with infrared touch delivers a satisfying user experience with a fast and precise touch response. Only commercial-grade displays are capable of delivering reliable, longlife performance and the ME series presents lower budget business operators the upgrade path to professional interactive digital signage without requiring specialist expertise

Thanks to Sharp/NEC’s modular computing approach and compatibility with all major operating systems, the ME series infrared touch provides all the flexibility you need to address all kinds of different use cases. Capable of landscape or portrait orientation and up to 18/7 hours continuous operation, the M series with infrared touch is designed for local retailers, restaurants and small business enterprises to assist shoppers, take orders and facilitate interaction in small meeting spaces.

Benefits

  • Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
  • Inspiring touch performance boosts user experience – the fast, stable and robust touch performance supports up to 20 touch points.
  • Resilient and durable – thermal tempered glass with anti-glare coating withstands vandalism and ensures perfect readability with reduced reflection and minimal visibility of finger prints.
  • Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
  • Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources

DISPLAY

Panel Technology IPS with Direct LED backlights
Screen Size [inch/cm] 55 / 138.8
Aspect Ratio 16:9
Brightness [cd/m²] 400
Contrast Ratio (default) > 8000:1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Colour Depth [bn] 1.073 (8bit + FRC)
Response Time (typ.) [ms] 8
Panel Refresh Rate [Hz] 60
Supported Orientation Landscape; Portrait
TOUCH
Touch Technology Infrared
Number of Touches Real multi-touch up to 20 touches
Frame Rate [Hz] 125
Touch Method Finger; Gloves; Stylus (≥ 2 mm)
Supported Operating System Android; Linux; Mac OS; Raspberry Pi; Windows
Data Interface USB-HID
Accuracy [mm] +/- 2
Palm Rejection no
Windows Ink no
GLASS
Type Thermal-tempered, anti-glare coating
Thickness [mm] 3
Light Transmission [%] 92 (+/- 2 %)
Haze Level [%] 4
Hardness [H] 7
RESOLUTION
Native Resolution
3840 x 2160
Supported Resolutions
1024 x 768;1280 x 1024;1280 x 720;1360 x 768;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1650 x 1050;1920 x 1080;1920 x 1200;1920 x 2160;2560 x 1440;2560 x 1600;3840 x 2160;4096 x 2160
SYNCHRONISATION RATE
Horizontal Frequency [kHz] 26 - 135
Vertical Frequency [Hz] 23 - 86
CONNECTIVITY
Input Video Digital 1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
Input Audio Digital 1 x DisplayPort; 2 x HDMI
Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232
Input Data 1 x USB 2.0 (MediaPlayer)
Output Audio Analogue 1 x 3,5 mm jack
Input Detect Custom; First; Last
OPEN MODULAR INTELLIGENCE
Intel® SDM accepts Intel® Smart Display Modules Large and Small up to 66 W
Compute Module Slot RPi Compute Module 4
SENSORS
Temperature Sensor Integrated, 3 sensors, triggered actions programmable
ELECTRICAL
Power Consumption Eco/max. [W] 120 shipping
Power Savings Mode [W] < 0.5; < 2 (Networked Standby)
Power Management VESA DPMS
Power Supply 100-240 V AC; 50/60 Hz
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C] +0 to +35
Operating Humidity [%] 20 to 80
Storage Humidity [%] 10 to 90
Storage Temperature [°C] -20 to 60
MECHANICAL
Dimensions (W x H x D) [mm] 1,256.8 x 725.4 x 80
Weight [kg] 31.8
Bezel Width [mm] 22.75 (left and right); 23.9 (top and bottom)
VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); M6
Ingress Protection IP5x (front); IP2x (back)
Packaging Dimensions (W x H x D) [mm] Box 1: 1,430 x 920 x 250
Packaging Weight [kg] Box 1: 41.4
MEDIAPLAYER
Supported File Storage / File System USB 2.0 / FAT16, FAT32
Supported Video Formats MPG (MPEG1/2/4, max res 1080p@30Hz); MP4 (MPEG2/4, H.263, H.264, HEVC/H.265, max res 3840x2160@60Hz); TS (MPEG2, H.264, HEVC/H.265, max res 3840x2160@60Hz); audio: LPCM, MP3, AAC; WMV (video H.264, Windows Media Video 9, max res 1080p@30Hz, audio WMA 9, WMA 10 Pro)
Supported Audio Formats MP3 (MP3); max. bit-rate 320 kBit/s
AVAILABLE OPTIONS
Accessories Feet (ST-401; ST-43M); Passive Pens (CB-PENS-3); Presence Sensor (KT-RC3); Soundbar (SP-ASCM-IQ2; SP-ASCM-2; SP-AS2); Speaker (SP-RM3a); Trolley (PD04Tipster); Wall mount (PDW S 32-55 L/P)
GREEN FEATURES
Energy Efficiency Energy consumption: 118 kWh/1000 h; LED backlight
Ecological Standards EnergyStar 8.0
ADDITIONAL FEATURES
Special Characteristics HDMI ARC; Powered USB Port (10 W)
Safety and Ergonomics BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI
Pixel Failure Class ISO 9241-307, Class 1
Audio Integrated Speakers (10 W + 10 W)
Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual; USB cable
Warranty 3 years warranty incl. backlight; additional services available
Operating Hours 18/7
External Control AMX NetLinx Support; ASCII Control Commands; Crestron Connected; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP
Remote Management Automated Email Alerts; NEC NaViSet Administrator 2
Security Disable HW Buttons; Disable IR Functionality; Emergency Notification



Display Specifications

Panel Size: 55"

Panel Type : IPS

Response Time: 8ms

Horizontal Sync :

Native Resolution : 3840 x 2160

Aspect Ratio :

Panel Brightness :

Static Contrast :
