Description

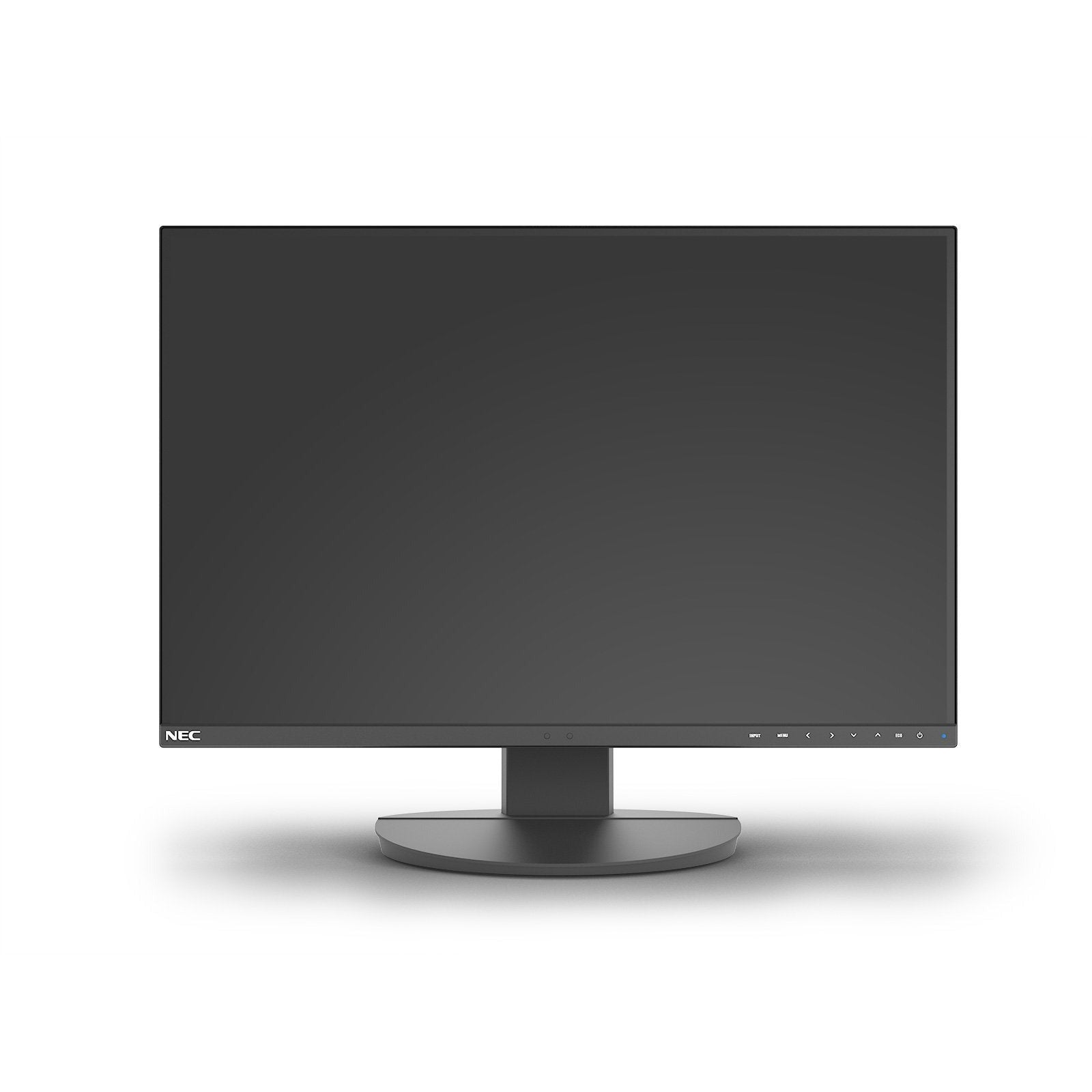

NEC MultiSync® EA241WU Ultra-Narrow Bezel – best productivity with tailored ergonomics plus style and performance to complement the modern office

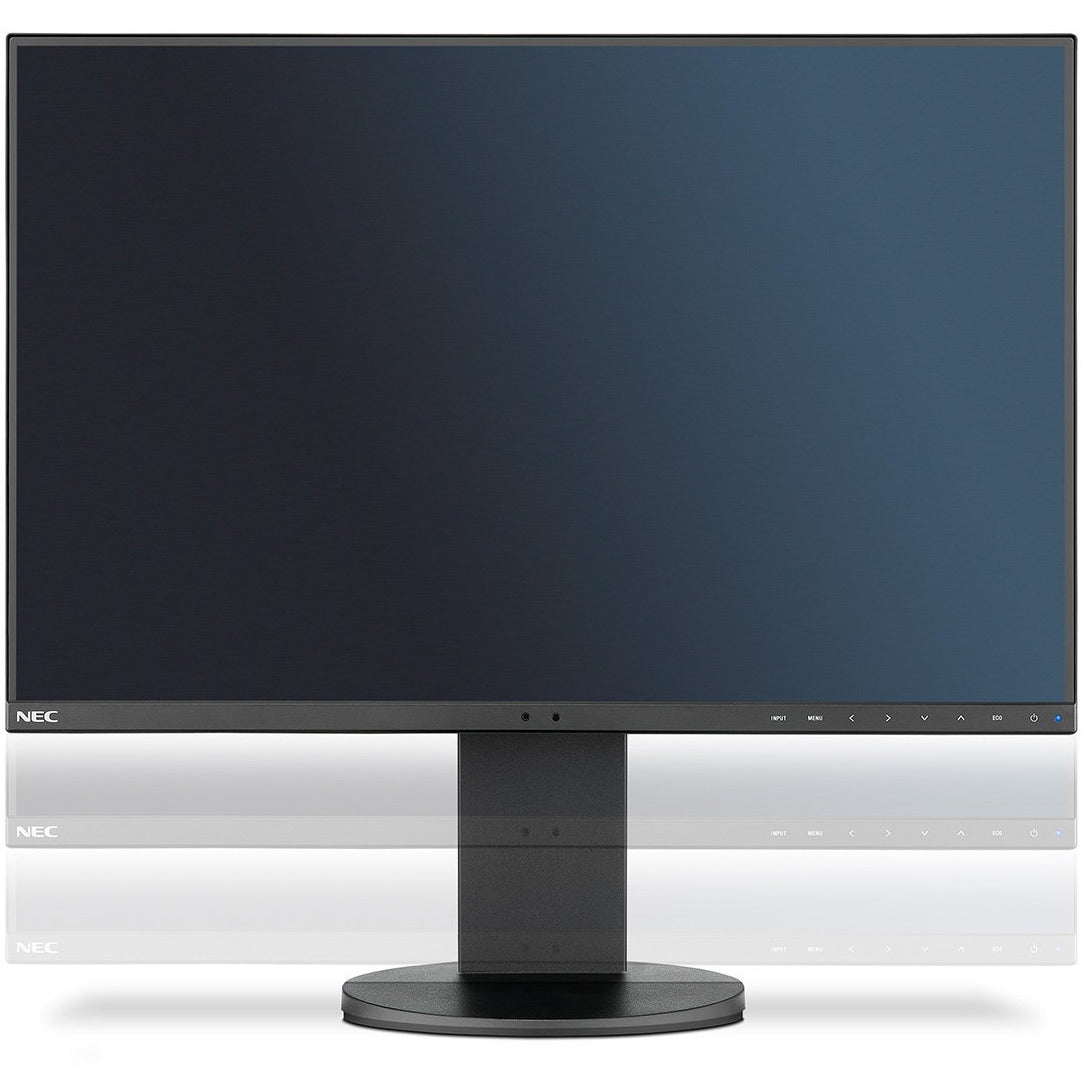

With full height adjustability from 0 to 150 mm and 170° swivel functionality, this 24” display enables the user to create an individually tailored workspace. Furthermore, built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates the effect of flickering thus ensuring the well-being of the user. Fulfilling the demand for future-ready performance and delivering all the quality and reliability commensurate with the NEC brand, the EA241WU is well positioned to maximise office productivity.
Performance AH-IPS screen technology with LED backlit panel delivers 300 cd/m² of brightness whilst keeping power consumption to a minimum.
Benefits
- Ergonomic Office – full height adjustability (150 mm), swivel, tilt and pivot functionality ensures perfect individual workspace set-up.
- Auto-Adjust Power Consumption – to minimize unnecessary power usage, the Human and Ambient Light Sensors adjust the display brightness according to user presence and room lighting conditions.
- Protecting your eyes from strain and damage – Built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates any backlight flickering, thus protecting your eyes against cataracts and macular degeneration without compromise to true-to-life display colour performance.

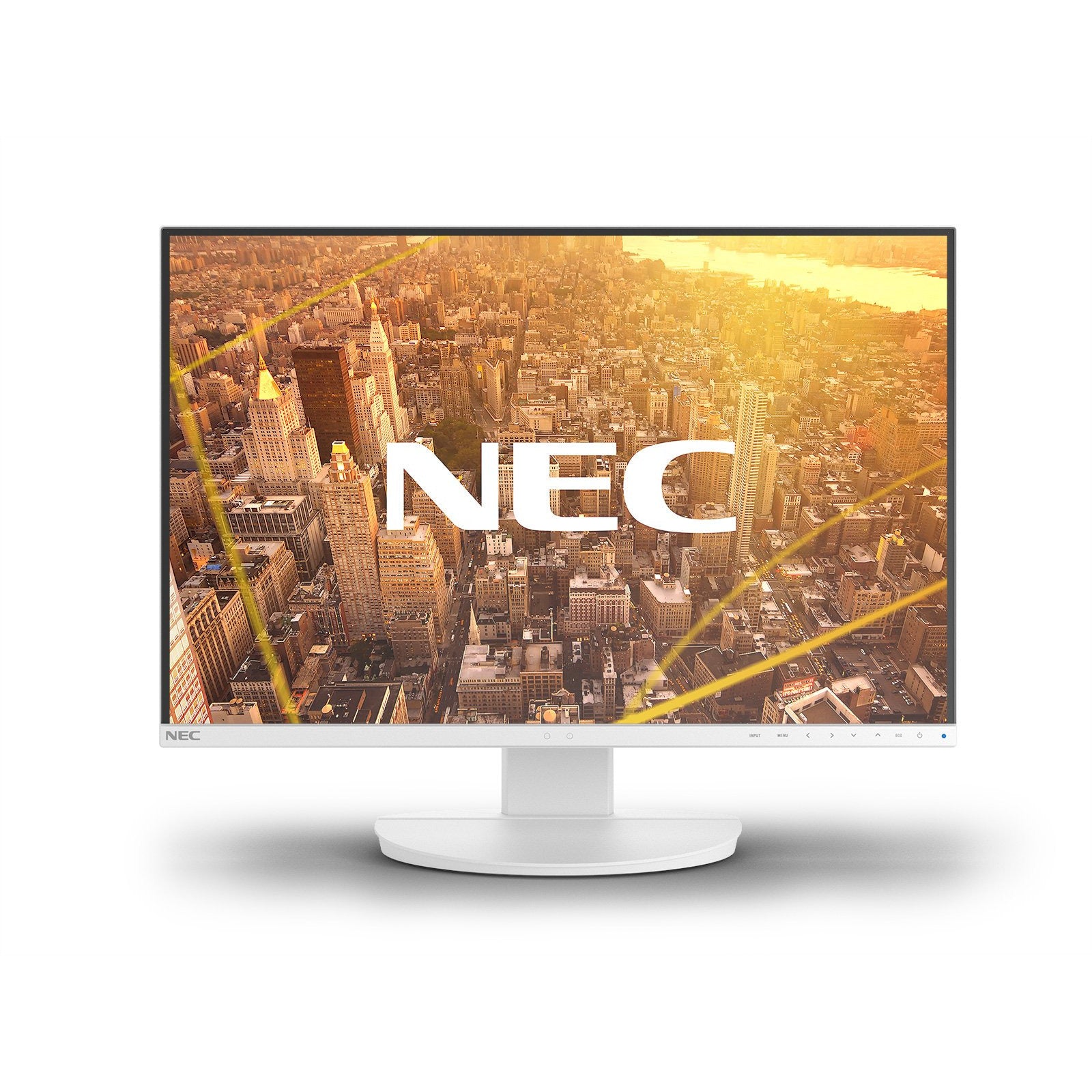

- Best in form and function – future-ready design with 3-sided ultra-narrow bezel, available in black or white, complementing a fresh professional office interior.
- Business Class Image Quality – Advanced High-Performance IPS (AH-IPS) panel provides the very best viewing angles as well as noticeably better colour reproduction.
DISPLAY
| Panel Technology | IPS TFT with W-LED backlight |
| Screen Size [inch/cm] | 24 / 61 |
| Screen Aspect Ratio | 16:10 |
| Pixel Pitch [mm] | 0.270 |
| Brightness (typ.) [cd/m²] | 300 |
| Contrast Ratio (typ.) | 1000:1 (5000:1 dynamic contrast ratio) |
| Viewing Angle [°] | 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) |
| Response Time (typ.) [ms] | 5 |
| Colours [Mio.] | 16.77 |
SYNCHRONISATION RATE
| Horizontal Frequency [kHz] | 31.5 - 95 |
| Vertical Frequency [Hz] | 56 - 75 |
RESOLUTION
| Optimum Resolution |
1920 x 1200 at 60 Hz
|
| Supported |
1024 x 768;1280 x 1024;1280 x 960;1366 x 768;1400 x 1050;1440 x 900;1600 x 1200;1680 x 1050;1920 x 1200;640 x 480;800 x 600
|
CONNECTIVITY

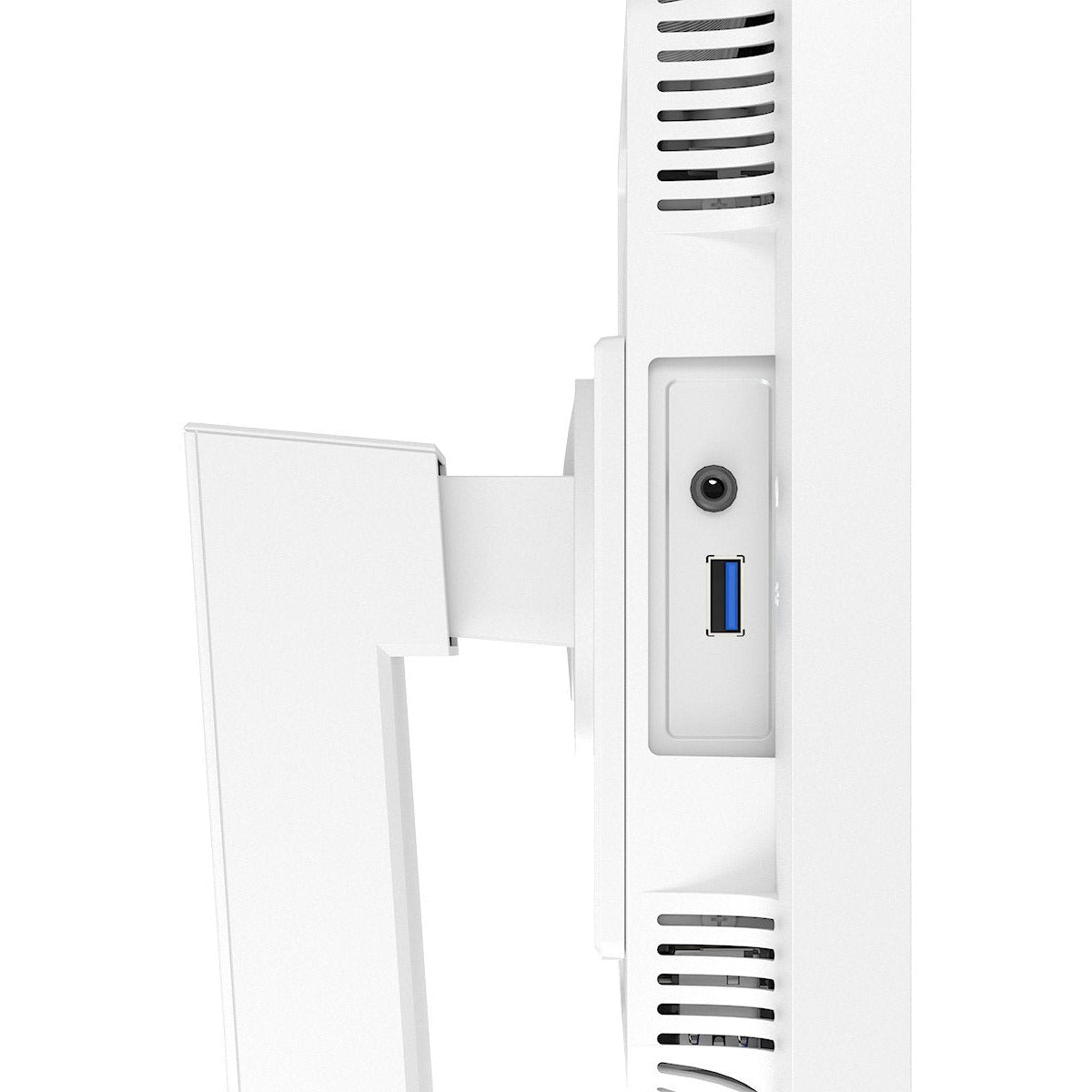

| Digital | 1 x DisplayPort; 1 x DVI-D; 1 x HDMI; USB ver. 3.0 (3 down / 1 up) |
| Analog | 1 x D-sub 15 pin |
ELECTRICAL
| Power Consumption on Mode [W] | 15 (Eco Mode 2); 20 (typ.); 47 (max.) |
| Power Savings Mode [W] | 0.3 |
| Power Supply | internal power supply |
ENVIRONMENTAL CONDITIONS
| Operating Temperature [°C] | +5 to +35 |
| Operating Humidity [%] | 20 to 80 |
ERGONOMICS

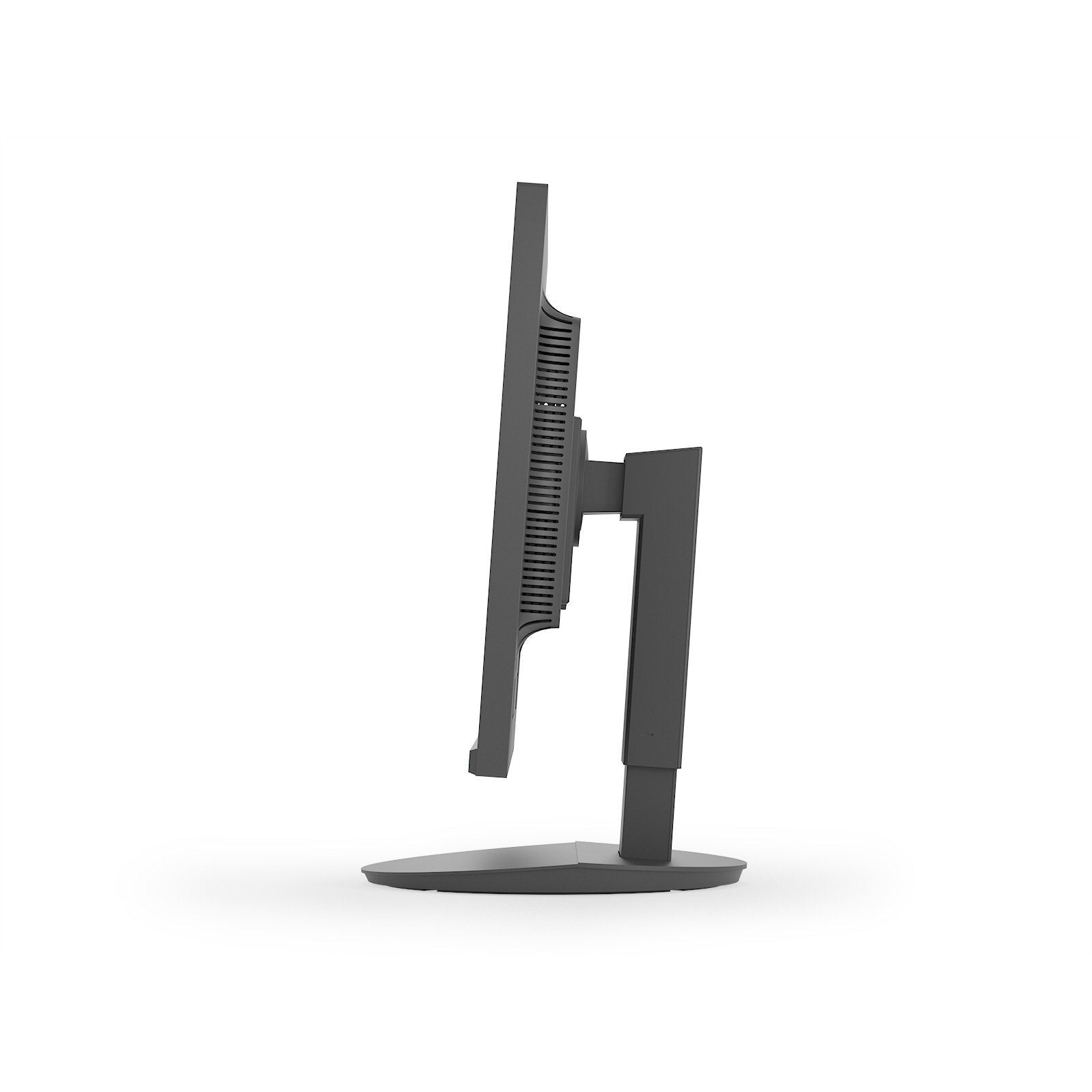

| Height adjustable stand [mm] | 150 |
| Screen Tilt / Swivel [°] | -5 to +35; -170 to +170 |
| Screen Rotate [°] | -90 to 90 (landscape to portrait mode) |
MECHANICAL
| Bezel Width [mm] | 0.8 (left/right/top) |
| Dimensions (W x H x D) [mm] | With stand: 531.5 x 515.4 x 250 |
| Weight [kg] | 6.7 |

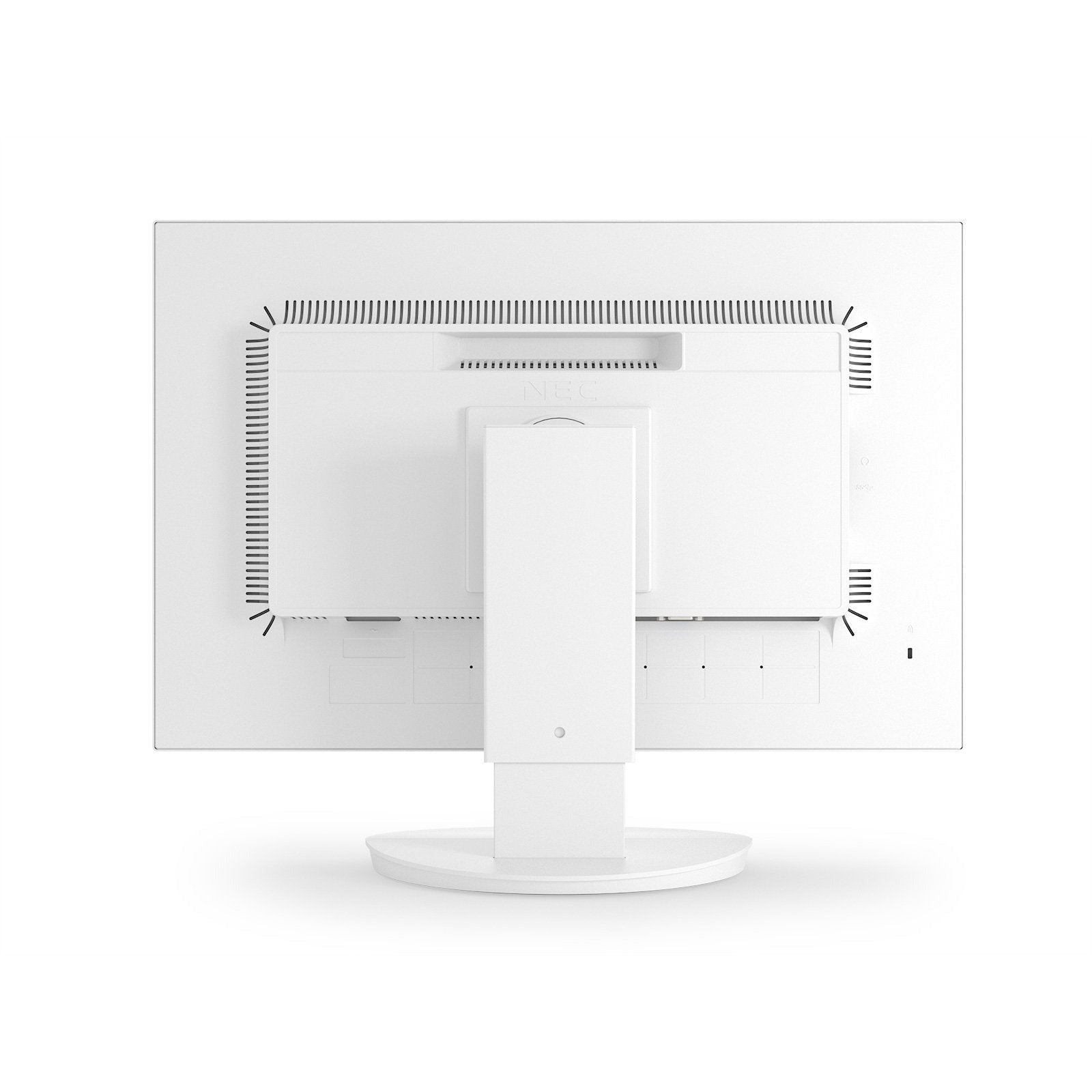

| VESA Mounting [mm] | 100 x 100 |
ADDITIONAL FEATURES
| Special Characteristics | Ambient light sensor for optimized brightness levels; Carbon Footprint Meter; Carbon Savings Meter; ControlSync®; Customize Setting; DICOM preset; EcoModes; Human Sensor; LED Backlight Technology; NaViSet Administrator 2; Quick release Stand and Handle; sRGB Support; Touch Sensor Keys; USB ver. 3.0 (3 down / 1 up) |

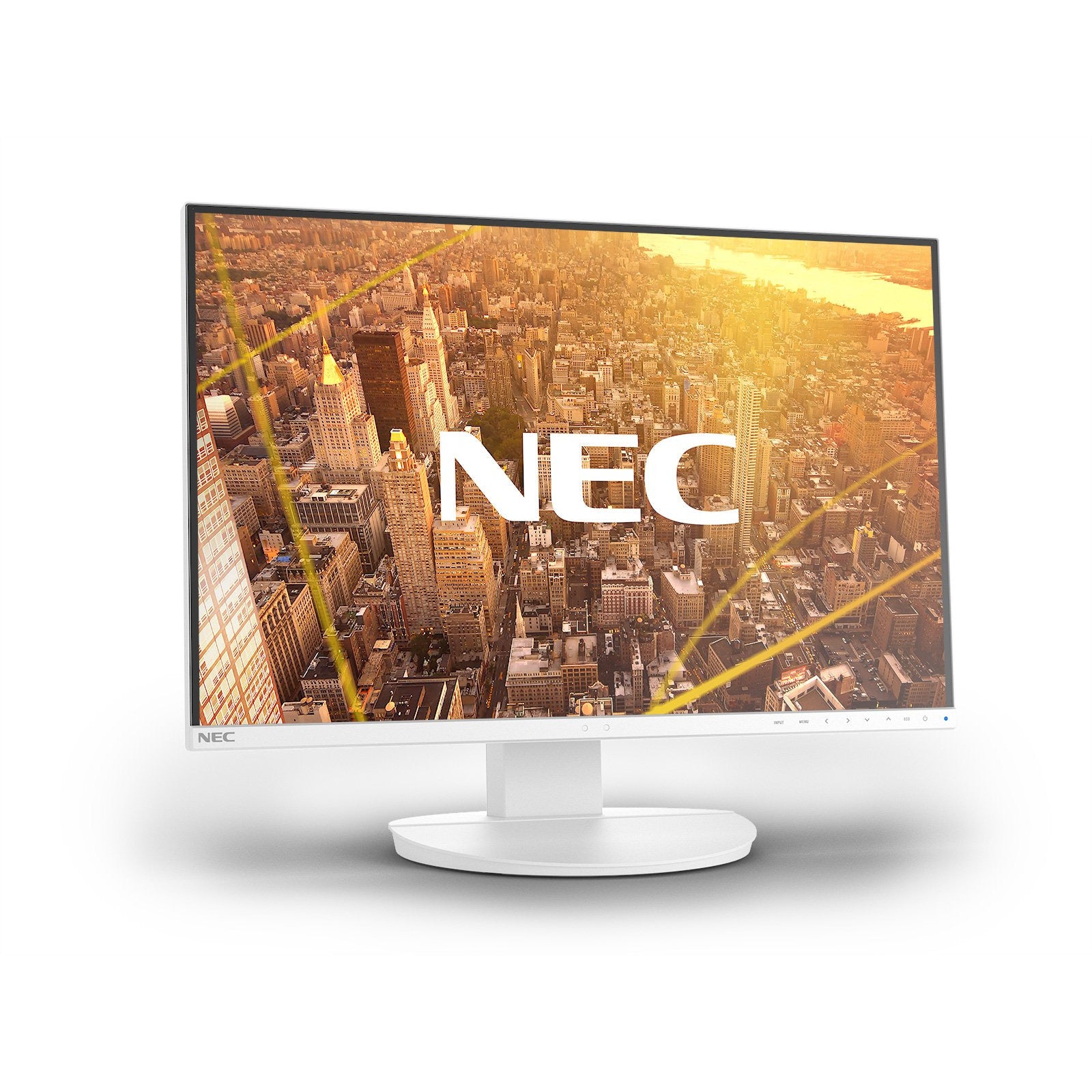

| Colour Versions | Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet |
| Cable Management | yes |
| Kensington security slot | yes |
| Plug and Play | VESA DDC2B; VESA DDCi |
| Audio | Headphone Jack; Integrated Speakers (1 W + 1 W) |
| Adjust Functions | Audio Volume / Lock-Out; Auto Adjust; Brightness; Colour Temperature Control; Contrast; Control Sync; DV Mode; EcoMode; Fine Adjust (analog); Human Sensing; Intelligent Power Management; Language Select; LED Brightness; Monitor Information; NTAA (Non-Touch-Auto-Adjustment); On-Screen-Display (OSD) lock-out; One Touch Recovery; Power-Off Timer; sRGB |
| Shipping Content | Control Sync Cable; DisplayPort cable; Monitor; Power Cable; Setup Guide; USB Cable |
| Safety and Ergonomics | CE; EAC; EnergyStar 8.0; ErP; Flicker-free; ISO 9241-307 (pixel failure class I); Low Blue Light; PSB; RoHS; TCO 8.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA; WEEE |
| Warranty | 3 years warranty incl. backlight; optional 4th to 5th year warranty extension |
GREEN FEATURES
| Energy Efficiency | Ambient light sensor; Energy consumption: 12 kWh/1000 h; Energy efficiency class: C; Human sensor; Intelligent Power Management |
| Ecological Materials | Downloadable manuals |
| Ecological Standards | Energy Star 8.0; TCO 8.0 |
Display Specifications
Panel Size: 24"
Panel Type : IPS TFT
Response Time: 5ms
Horizontal Sync :
Native Resolution : 1920 x 1200
Aspect Ratio :
Panel Brightness :
Static Contrast :
